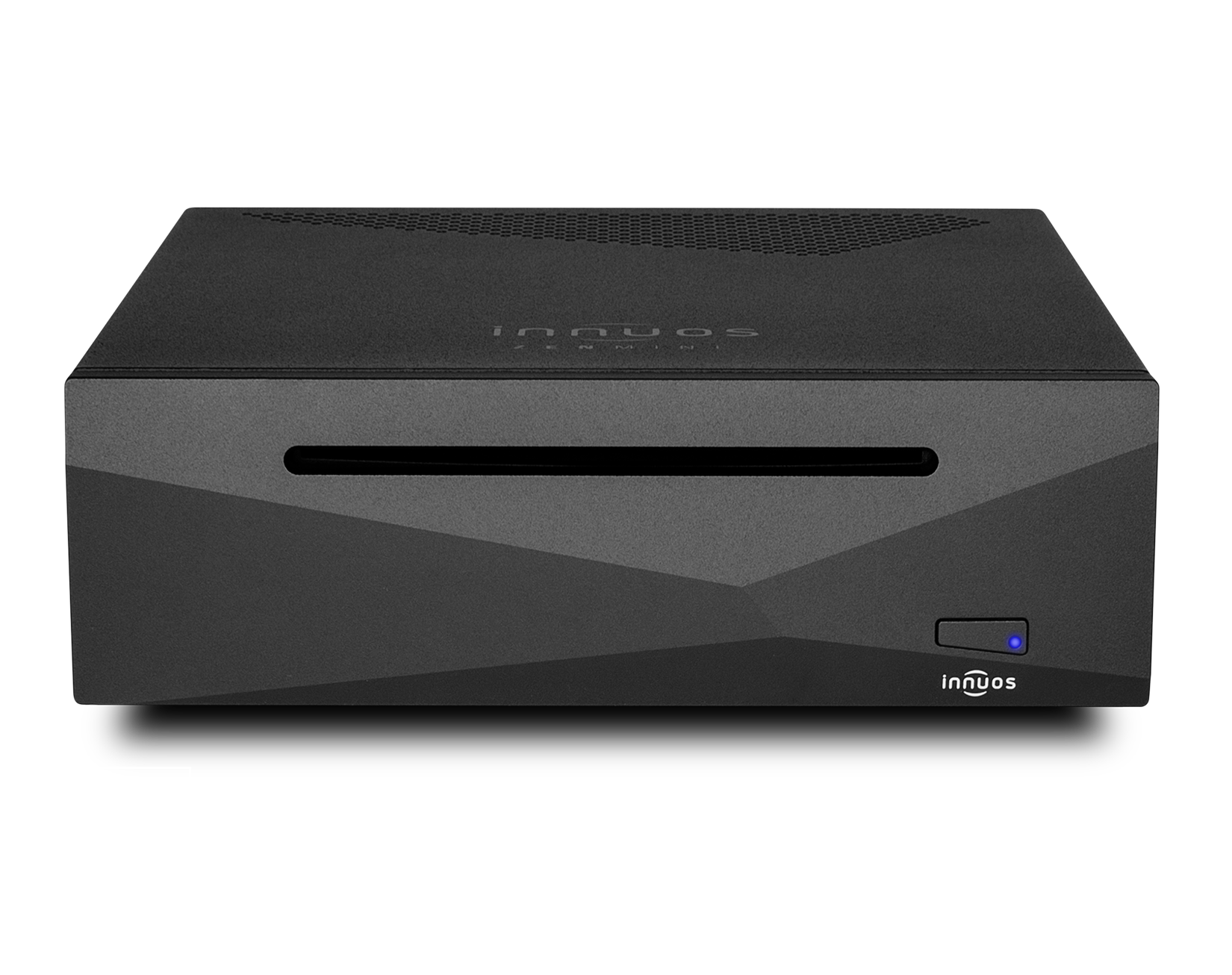

ZENmini Mk3

Our gateway server with all the full benefits of innuOS, now with improved connectivity and an upgraded path for even greater flexibility. Ideal for simple integration into multi-room systems or for those making the first step to a dedicated audio server.

⦿ CD Ripper, NAS and Streamer
⦿ Compact design with quiet, fanless operation
⦿ Includes both analogue and digital outputs
⦿ Can be used as Roon Core (Optional)
⦿ Custom audio treated components
⦿ Upgradeable with Linear Power Supply

EUR €
1TB HDD € 1099
2TB HDD € 1 199
4TB HDD € 1 399
GBP £
1TB HDD £ 1 049
2TB HDD £ 1 149
4TB HDD £ 1 349
USD $
1TB HDD $ 1 399
2TB HDD $ 1 549
4TB HDD $ 1 799
CAD $
1TB HDD $ 1 849
2TB HDD $ 2 049
4TB HDD $ 2 349

Powered by innuOS

innuOS allows complete Music Library management using a tablet or smartphone

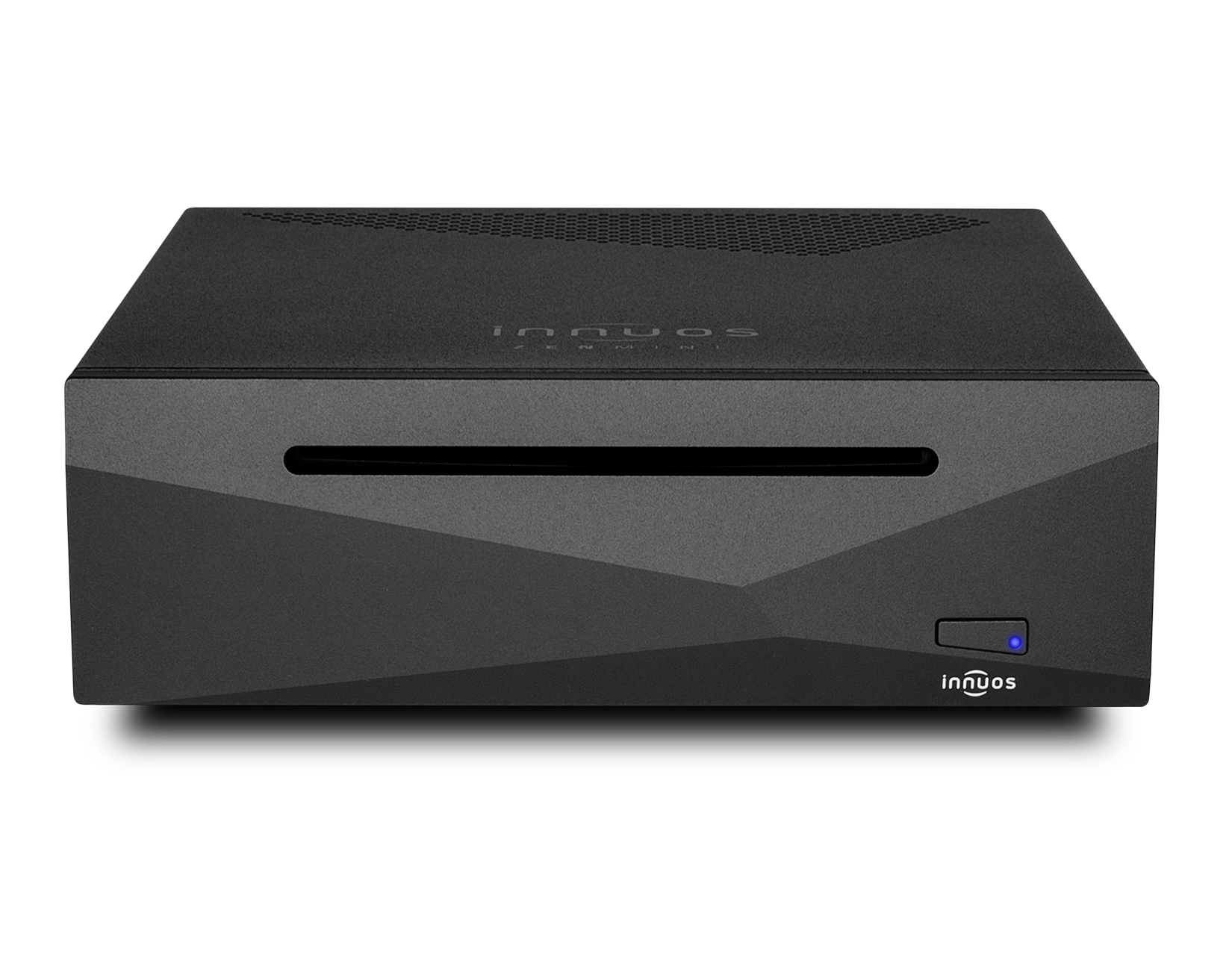

ZENmini

Looking for a tidy solution for all your CDs and the files laying around on the computer? Need an easy way to stream and listen to all your favourite music? Now there’s a simple way to store, manage and play all of it: the ZENmini.

01.

Convenient Design

With its compact footprint, low-power efficiency, quiet operation and range of connectivity, the ZENmini is a convenient and discreet music server for all your Digital Audio needs – from CD ripping to purchased downloads, Internet Radio to Spotify Connect.

02.

Hi-Fi Engineering

The ZENmini offers more than just casual usage. Floating optical and storage drives paired with a custom motherboard and premium components offer far greater musical performance than conventional computers and NAS drives.

03.

Perfect CD Player replacement

Featuring additional Optical and Coaxial digital outputs as well has a high-resolution 24bit/192KHz Digital to Analog Converter (DAC). This means you can now connect directly to all your favourite devices such as Soundbars, AV Receivers or Integrated Amplifiers the easy way.

04.

Powerful Performer

Using our own exclusive innuOS operating system, our servers are configured and optimised from the ground up for the perfect balance of performance and simplicity. Control your library from the comfort of your tablet or smartphone – no computer required.

Specifications

AUDIO OUTPUTS

Digital Output USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA
Coaxial S/PDIF up to 24bit/192KHz
Optical S/PDIF up to 24bit/192KHz
Analogue Output RCA Analogue up to 24bit/192KHz

CONNECTIVITY

Ethernet 2 x rear panel RJ45 – Bridged Gigabit Ethernet
USB 4x USB 3.0

FORMATS

CD Formats Red Book
Disc Compatibility CD, CD-R, CD-RW
Audio format for stored CDs FLAC (zero compression), WAV
Audio Formats Supported for streaming and playing WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA on supported DACs

SAMPLE RATES

Sample Rates 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , up to DSD128 via DoP, Native DSD on selected DACs
Bit Depths 16bit, 24bit, 32bit

USER CONTROL INTERFACES

Web Interface Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers
Mobile App for iPhone/iPad, Android and Windows 10

HARDWARE

CD/DVD drive TEAC Slot-loading drive
Hard Drive 1TB WD Red HDD
CPU Intel Quad Core N4200
Memory 4GB DDR3

STREAMING AND CD STORAGE

UPnP/DLNA Integrated UPnP Server
Streaming Services Qobuz, Tidal, Radio Paradise, Internet Radio
Roon Compatibility Roon Core and Roon Endpoint
Average CD Storage Time 5 minutes
CD Metadata FreeDB, MusicBrainz, Discogs, GD3
Compatible Music Systems Sonos Multi-room Wireless Music System
DLNA/UPnP compatible streamers
USB DACs complying to USB Audio Class 2
USB DACs supporting DSD over DoP protocol
Selected USB DACs supporting Native DSD

REQUIREMENTS

Network Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates
Network router with at least one available ethernet port
Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal
Recommended App (USB Connection Only) iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10)

POWER

Mains Supply Low ripple Power Adapter, 12V 5A, CEC Level V efficiency
Power Consumption 10W when idle, 15W peak

PHYSICAL

Dimensions 215mm x 245mm x 75mm (W x D x H)
Weight 4,5 Kg
In the box Innuos ZENmini Mk3 1TB Music Server
AC/DC Power Adapter
Mains Cable
2m Ethernet Cable
Getting Started leaflet

Awards

Fairaudio

AudioStream

Fairaudio

The Audio Beatnik

Hi-Fi +

Haute Fidélité

Hi-Fi +

Reviews

``The price-performance ratio of the Innuos ZENmini Mk3 is quite outstanding``
Fairaudio give a fantastic review to the ZENmini Mk3, where Good workmanship meets an exemplary intuitive user interface - not only the app, but also the browser-based music server management interface.
They were also greatly impressed by the sheer resolution and - especially - the wonderfully vivid, precise and spacious presentation of its sound quality.
Ralph Werner

Fair Audio

“Le serveur DAC Innuos ZENmini Mk3 est une incontestable affaire à tous points de vue.”
BEST BUY Award received by Haute Fidelite for the ZENmini and LPSU with high ratings in Timbre, Dynamics, Soundstage and Price/quality Ratio
Dominique Mafrand

Haute Fidélité Magazin, Issue #246

“Changing how I feel about digital music, this combo was a pleasant surprise.”
Great review by Audio Beatnik where he describes how the ZENmini and LPSU has changed his perception on digital systems and how he found it, “musically engaging”
Jack Roberts

Audio Beatnik

“With the addition of the Innuos ZENmini Mk 3 and LPSU, my complacency is gone, and I’m excited about my digital sound again.”
A wonderful review by Audio Beat on the ZENmini and LPSU as, “highly engaging pair of music-makers.”
Mark Blackmore

The Audio Beat
