ZENith Next-Gen

Feel the presence of your music

ZENith Next-Gen music server and streamer

The digital source has become a known sight on Hi-Fi systems for its convenience. Almost all music can now be accessible at the touch of a button. But playing sound is one thing and playing music is another. To get the true essence of the recording, your digital signal must be as pristine and well-timed as possible so your DAC can play at its best. Feed it with a noisy signal and that will just be amplified along the chain.

A pristine digital signal requires a dedicated digital source, with meticulous detail starting from the ultra-low noise power supplies, through a custom mainboard and all the way to specific software development minimizing power noise during operation.

The ZENith Next-Gen takes our innovations such as the PreciseAudio mainboard, NGaN regulator and AudioCore technology to new heights compared to the ZEN Next-Gen. First, the ARC6 NGaN Power Supply, trickled-down from the power supply of the acclaimed STATEMENT Next-Gen with its Active Rectification, 300VA Audio Grade Transformer, high-performance choke and 130000uF of Mundorf capacitors, provide all the current the system needs with very low impedance so that no transient is missed.

The ZENith Next-Gen upgrades the ZEN Next-Gen with a Core i7 Embedded processor with 8 performance cores, providing further core separation for AudioCore whilst maintaining excellent overall performance for a responsive system at all times.

The ZENith Next-Gen also features a pSLC (pseudo Single-Level Cell) industrial-grade SSD for the OS, powered independently, is added directly to the PreciseAudio board. As pSLC contains simplified controllers, they generate much less EMI compared to standard SSDs. Being the OS SSD that bears most of the system work, this results in a considerably lower operating noise with direct impact on sound quality.

This combination brings a new dimension to the ZENith Next-Gen. It's no longer about the frequencies, pace or even the size of the soundstage. Details in music now emerge as if by revelation. The breathiness of a voice, the vibrations on a drum's skin, the presence of fingers sliding down a guitar neck. They are presented with a transparency that starts feeling like a live presence.

It's hard to put into words but if you listen, you'll know.

ZENith Next-Gen music server and streamer

Main Features

01.

Innuos ARC6 NGaN PSU

Combining the trickled-down version of the ARC6 Active Rectification board with a 300VA Audio Grade Transformer, high-performance choke and over 130000uF of Mundorf capacitors with the cutting-edge Gallium Nitride Innuos NGaN Regulation stage results in a marked improvement in sound transparency and realism compared to the ZEN Next-Gen.

02.

Innuos PreciseAudio Mainboard

An all-new custom server-grade mainboard, ultra-tuned for low processor latency, power noise and EMI emissions; further improved by enhanced power regulators and solid capacitors.

03.

High Performance, Low Power

New generation of Intel Core i7 with 8 physical cores for enhanced Innuos AudioCore performance, providing separate cores dedicated only to audio processes. Supported with 16GB of industrial-grade low-noise DDR4 RAM allowing to cache more databases and files for a speedy response.

04.

Modular Architecture

You can configure the ZENith Next-Gen as a Music Server/Streamer, Server-only or Streamer-only easily. Choose to have no internal drives, or up to a maximum of 16TB SSD storage. Leverage the ZENith Next-Gen as a premium streamer through an optional Digital Audio Output slot for different modules such as PhoenixUSB Lite, PhoenixI2S Lite, or SPDIF.

05.

pSLC OS SSD

Superior industrial-grade pSLC SSD for the OS for even lower operating noise, independently powered and with power-loss protection for extra resiliency and durability.

06.

Innuos XSM

High Performance Expandable Storage Management System (XSM) allows a single pool of storage from multiple drives. The ZENith Next-Gen supports an internal, high performance NVMe PCIe drive up to 8TB with an additional externally accessible M.2 NVMe slot for up to 8TB for a total 16TB of seamless storage. Intelligent management and data protection provided through Sense.

07.

Premium Chassis

Newly-designed 10mm thick CNC-machined bead-blasted and anodized aluminium chassis, containing new vibration-dampened toroidal platform and with Chassis Ground port connection.

08.

Sense 3

Unique benefits for the ZEN Next-Gen and ZENith Next-Gen through Sense 3, including new Real-Time Kernel, lowering latency even further for the core Operating System, AudioCore for audio process to run in dedicated physical cores, Expandable Storage Management interface, and new CD-ripping via external USB drives with drive-head alignment for accurate ripping.

RECOMMENDED RETAIL PRICE
Black and Silver

EUR €
No Storage
No Modular Output Board
     €  15 000
GBP £
No Storage
No Modular Output Board
 £ 14 200
USD $
No Storage
No Modular Output Board
  $  18 900
CAD $
No Storage
No Modular Output Board
 $ 25 000
Optional pre-installed storage
(additional cost and also available for separate purchase)

EUR €
2TB SSD (Internal Storage)      +  €  350
4TB SSD (Internal Storage)      +  €  650
8TB SSD (Internal Storage)      +  €  1900
16TB SSD (8TB Internal + 8TB External Storage)      +  €  3800
GBP £
2TB SSD (Internal Storage)  + £ 325
4TB SSD (Internal Storage)  + £ 600
8TB SSD (Internal Storage)  + £ 1 750
16TB SSD (8TB Internal + 8TB External Storage)  + £ 3 550
USD $
2TB SSD (Internal Storage)  + $  450
4TB SSD (Internal Storage)  + $  800
8TB SSD (Internal Storage)  + $  2 300
16TB SSD (8TB Internal + 8TB External Storage)  + $  4 600
CAD $
2TB SSD (Internal Storage)  + $ 550
4TB SSD (Internal Storage)  + $ 1 050
8TB SSD (Internal Storage)  + $ 3 100
16TB SSD (8TB Internal + 8TB External Storage)   + $  6 200
Optional pre-installed modular output boards
(additional cost and also available for separate purchase)

EUR €
SPDIF Board + €  600
PhoenixUSB Lite Board + € 1 100
PhoenixI2S Lite Board + € 1 600
GBP £
SPDIF Board + £  600
PhoenixUSB Lite Board + £ 1 000
PhoenixI2S Lite Board + £  1450
USD $
SPDIF Board + $  750
PhoenixUSB Lite Board + $ 1 350
PhoenixI2S Lite Board + $ 1 950
CAD $
SPDIF Board + $  950
PhoenixUSB Lite Board + $ 1 750
PhoenixI2S Lite Board + $ 2550

Optional Digital Output Modules

PULSAR, ZEN Next-Gen and ZENith Next-Gen are now available with optional PhoenixUSB Lite Board
PhoenixUSB Lite Board
  • Regenerated and Reclocked USB signal to your Class 2 USB DAC, greatly increasing sound quality
  • High-precision 3ppb 24MHz OCXO clock for greatly improved timing and signal integrity
  • Ultra-low noise LT3045 linear regulators for each independent voltage, no switching regulators on main USB chip
  • Provides a pristine 5V line for the USB connection on your DAC
PULSAR, ZEN Next-Gen and ZENith Next-Gen are now available with optional PhoenixI2S Board
PhoenixI2S Lite Board
  • Bypass conversion stages with a direct connection straight to your DAC chip
  • 3ppb 24Mhz main clock, with two premium FemtoClocks
  • HDMI connector with 8 pin-configurations.
  • Ensure maximum audio resolution compatibility up to DSD1024
PULSAR, ZEN Next-Gen and ZENith Next-Gen are now available with optional SPDIF Board
SPDIF Board
  • Provide a superior SPDIF Coaxial, Optical and AES outputs for your DAC
  • Supports PCM up to 24bit/192KHz
  • Optimised power supply for ultra-low noise
  • High-Quality Gold-plated Connectors

Controlled via the Innuos Sense App

Navigating your music collection is now more intuitive and responsive, offering a premium experience whether you’re ripping CDs, creating playlists, importing files, or exploring streaming services.

Sense delivers optimal music playback with the following features:

  • Seamless and automatic ripping of CDs on Innuos music servers
  • Navigating streaming services like Qobuz, Tidal, Deezer or HighResAudio with ease. TIDAL Connect and MAX resolution supported, with more streaming services to come
  • Fully unified library combining music stored locally (on Innuos music servers) or on a NAS with music from Qobuz and TIDAL, blending related artists and discographies
  • Internet Radio with easy preset creation. Dedicated Podcast section
  • Radio Paradise, a popular internet-radio service available in CD-quality FLAC
  • Easy creation of mixed playlists plus support for Qobuz collaborative playlists, with fast universal searches across multiple streaming services and music stored locally or on NAS drives
  • Curated and configurable Smart Mixes based on your music
  • Home Screen widgets allow you to customize and access your favorite features at the touch of a button
  • Seamless and automatic ripping of CDs including via external USB drives with Sense 3

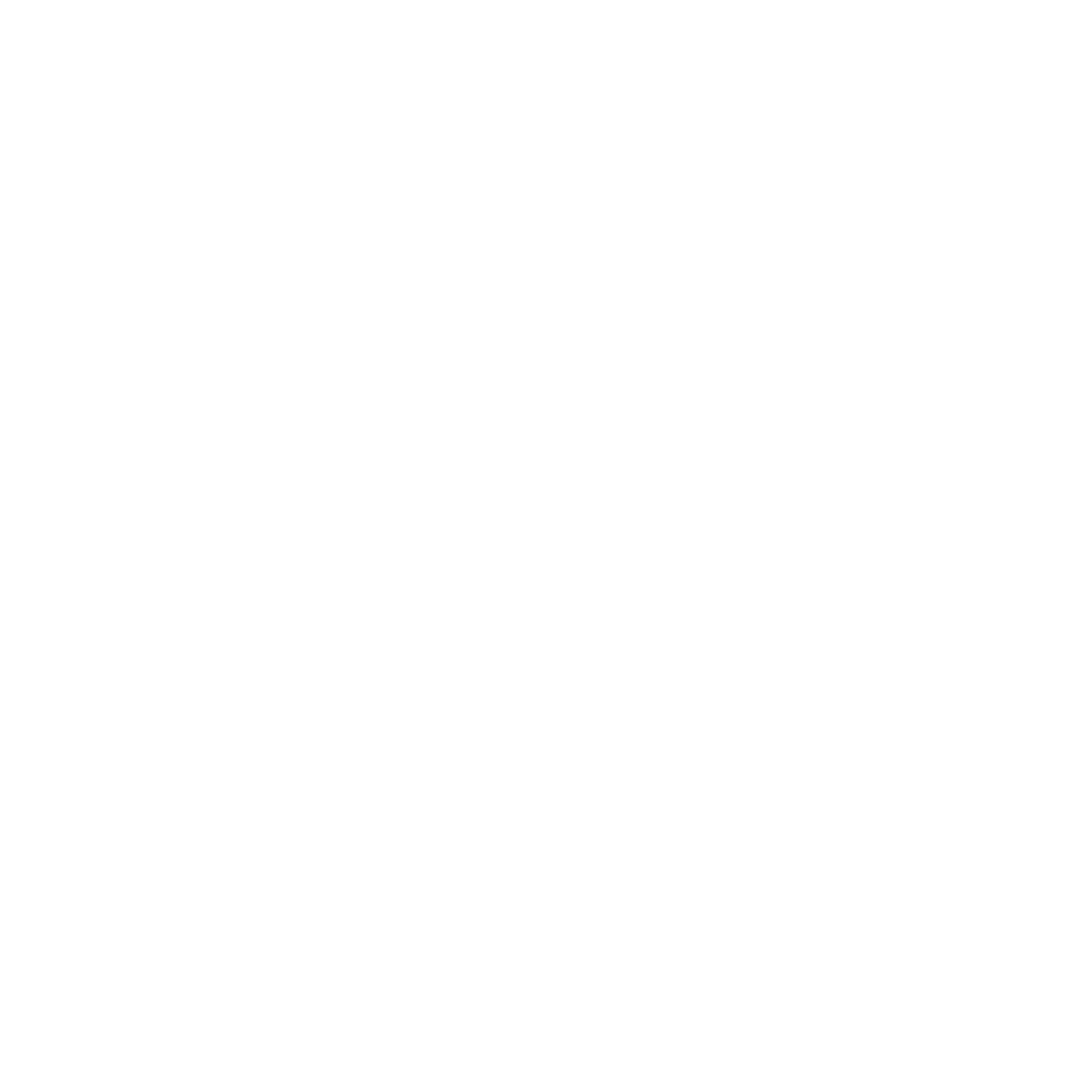

  • ZENith-Next-Gen-backplate-with-NGaN

    Specifications

    AUDIO OUTPUTS

    Digital Output 3 x USB 3.2 Gen2
    (Up to 32bit/768KHz, Up to DSD256 via DoP, Up to DSD512 via Native DSD)
    Optional Digital Output Modules SPDIF Board
    Adds 1 x AES, 1 x Coaxial, 1 x Optical
    (Up to 24bit/192KHz PCM)
    PhoenixUSB Lite Board
    Adds 1 x Reclocked USB 2.0 Output
    (Up to 32bit/768KHz PCM, Up to DSD256 via DoP, Up to DSD512 via Native DSD)
    PhoenixI2S Lite Board
    (Up to 32bit/768KHz PCM, Full DSD support up to Native DSD1024)

    CONNECTIVITY

    Ethernet 2 x LAN RJ45 Bridged Gigabit Ethernet (LAN, Streamer)
    USB 3 x USB 3.2 Gen2 (Backup/Import, Aux, DAC)
    Chassis Ground 4mm ‘Speaker plugport

    FORMATS

    Ripping External USB-connected CD ripper required
    CD Formats Red Book
    Disc Compatibility CD, CD-R, CD-RW
    CD Ripper Formats FLAC (compression level 0), WAV
    Playback Audio Formats WAC, AIFF, FLAC, ALAC, AAC, MP3, MQA
    External USB-connected CD ripper required

    SAMPLE RATES

    Sample Rates 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 768kHz, DSD over PCM (DoP) up to DSD256, Native DSD up to DSD512 (on selected DACs)
    Bit Depths 16bit, 24bit, 32bit

    USER CONTROL INTERFACES

    Web Interface Modern Web Browsers from iOS, Android, Windows and OS X
    Mobile Innuos Sense App for iOS/Android/Kindle Fire

    HARDWARE

    Storage 1 x pSLC SSD for OS
    [Optional] 1 x PCI-E NVme SSD – 2TB / 4TB / 8TB (Factory fitted)
    [Optional] 1 x m.2 NVme SSD (User or factory fitted)
    CPU Intel Core i7: 8 x Physical Cores
    Memory 16GB DDR4 Industrial-Grade RAM

    STREAMING AND CD STORAGE

    UPnP/DLNA AssetUPnP
    Streaming Services Qobuz, Tidal, Deezer, HighResAudio, Internet Radio
    Average CD Storage Time 5 Minutes
    CD Metadata FreeDB, Musicbrainz, Discogs, GD3
    Compatible Music Systems Sonos Multi-room Wireless Music System
    DLNA/UPnP Compatible Devices
    USB DACs complying to USB Audio Class 2
    Selected USB DACs supporting Native DSD

    REQUIREMENTS

    Network Internet connection required for metadata lookup, streaming services and software updates.
    Network access via Ethernet
    Premium subscription required for streaming services such as Qobuz, Tidal etc.

    POWER

    Mains Supply 230V AC / 115V AC (Switchable)

    PHYSICAL

    Dimensions 420mm x 365mm x 105mm (W x D x H)
    Weight 14,3 kg
    In the box Innuos ZENith Next-Gen
    Mains Cable
    2m Ethernet Cable
    Quick Start Guide

    Reviews

    Innuos ZENith Next-Gen

    ``The best streaming platform I ever auditioned, abundant details with musicality.``

    Zhehong Lin, Audionet (Taiwan)

    Innuos ZENith Next-Gen music server + streamer

    “The piano treble is crystal clear and the bass with full body, ZENith Next-Gen Next-Gen can really reproduce the grand piano cavity”

    Patrick Lee, Hifi388 (Hong Kong)
