We now offer a range of Output Modules available to use across STREAM Series & ZEN/ZENith Next-Gen systems. These Output Modules are available upon request with a new system and can also be installed into existing systems by your dealer.
All Innuos systems come standard with a USB output, ensuring you have access to this feature even if you order a system without an output module.
All output modules must be fit by an official Innuos dealer.
The new Output Module options are as follows:
- StandardDAC
- PerformanceDAC
- PhoenixDac*
- SPDIF Board
- PhoenixUSB Board
- PhoenixI2S Board**
* PhoenixDAC is ONLY available on STREAM3 systems.
** PhoenixI2S is ONLY available on STREAM3 & ZEN/ZENith Next Gen systems.

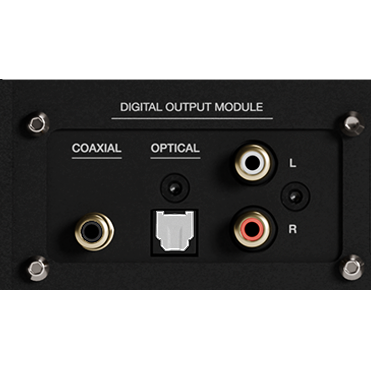

| Standard Dac Board: Add RCA analogue output, plus optical and coaxial SPDIF outputs. Supports PCM up to 24bit/192KHz. Available on: STREAM1 |  |
| PerformanceDAC Board: Latest AKM DAC chip and high-quality TCXO clocks. Support PCM up to 32bit/768KHz, Native DSD up to DSD512. Independent power supplies for digital and analogue stages . High-Quality Gold-plated RCA Connectors. Available on: STREAM1 STREAM3 |  |
| PhoenixDac: Dual Mono AKM DAC Chips with OCXO Clock plus FemtoClocks for Audio. Support PCM up to 32bit/768KHz and Native DSD. Independent Power Supply for Digital and Analogue Stages. High-Quality Gold-plated RCA and XLR Connectors. Available on: STREAM1 STREAM3 |  |
| SPDIF Board: Provide a superior SPDIF Coaxial, Optical and AES outputs for your DAC. Supports PCM up to 24bit/192KHz. Optimised power supply for ultra-low noise. High-Quality Gold-plated Connectors. Available on: STREAM1 STREAM3 ZEN Next-Gen ZENith Next-Gen |  |
| PhoenixUSB Board: Regenerated and Reclocked USB signal to your Class 2 USB DAC, greatly increasing sound quality. High-precision 3ppb 24MHz OCXO clock for greatly improved timing and signal integrity Ultra-low noise LT3045 linear regulators for each independent voltage, no switching regulators on main USB chip. Provides a pristine 5V line for the USB connection on your DAC. Available on: STREAM1 STREAM3 ZEN Next-Gen ZENith Next-Gen |  |
| PhoenixI2S Board: Bypass conversion stages with a direct connection straight to your DAC chip. 3ppb 24Mhz main clock, with two premium FemtoClocks. HDMI connector with 8 pin-configurations. Ensure maximum audio resolution compatibility up to DSD1024. Available on: STREAM3 ZEN Next-Gen ZENith Next-Gen |  |
